FRP Or Reinforced PP Composite Tank For Industry, Agriculture, Chemical
Productdetails:
| Place of Origin: | China |
| Merknaam: | China brand |
| Certificering: | CE/UL/NSF |
| Model Number: | Various models available |
| Document: | FRP-tanks-print.pdf |
Betalen & Verzenden Algemene voorwaarden:
| Minimum Order Quantity: | 1 set |
|---|---|
| Prijs: | onderhandelbaar |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 5-8 working days after payment received |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 set per month |
|
Gedetailleerde informatie |
|||
| Size(inch) of the product: | Various size available | Diam&Height(mm) of the prodcut: | Multiple options |
|---|---|---|---|
| The Opening(inch): | Top&Bottom Opening 4"Thread | The product design Flow Rate(T/H): | Multiple options |
| The Original of the tank: | China | Advantages: | Easy Maintenance And Upkeep,Corrosion resistant and no leak |
| Core Material: | FRP or reinforced PP | The Usage: | Industry, Agriculture, Chemical |
Productomschrijving

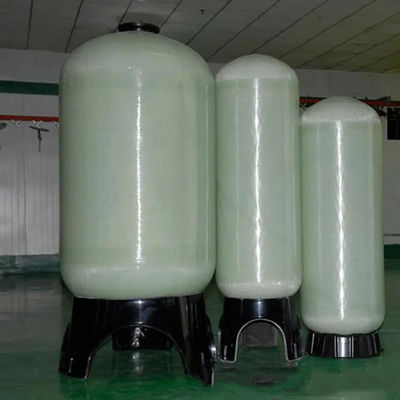

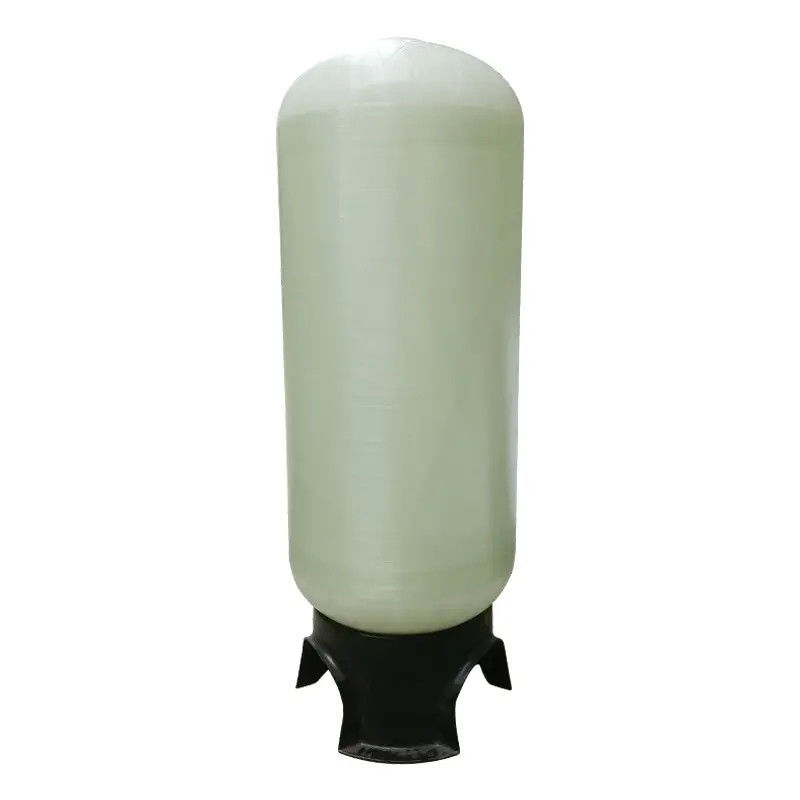

FRP Or Reinforced PP Composite Tank For Industry, Agriculture, Chemical
ressure Containment Solutions for Water Purification:
Engineered as corrosion-impervious composite vessels, FRP tanks employ continuous fiber reinforcement within thermosetting polymer matrices. Core construction initiates with polyethylene (PE) or fiber-reinforced composite liners, over which a computer-controlled multidirectional layup process precisely deposits structural fibers and resin systems. This automated fabrication produces unitary vessels optimized for diverse aqueous process requirements across treatment applications.
Structural Configuration:
• Pressure Vessel: Cylindrical FRP composite body
• Fluid Access Points: Primary inlet (upper terminus), secondary inlet/drain (lower terminus), dedicated discharge port
• Support System: Integrated structural foundation
Terminal and discharge interfaces predominantly feature ISO-standard flanged connections or high-integrity threaded couplings. Foundation elements utilize glass-fiber reinforced thermosets or polypropylene composites with mineral reinforcement.
Process Application Scope:
These vessels serve critical containment functions in:
- Primary treatment stages (raw water storage)
- Tertiary purification systems (demineralized/ultrapure water)
- Ion exchange processes (softening/treatment)
- Effluent management systems (pretreated discharge)
Deployment spans:
Industrial Scale: Chemical processing, pharma manufacturing, food/beverage production, agricultural water systems
Distributed Systems: Commercial facilities, multi-residential buildings, point-of-use installations
Configuration selection involves parametric analysis of: volumetric capacity (m³), pressure rating (psi/bar), chemical compatibility (pH/temperature), and spatial constraints.
|
尺寸(英寸) |
直径&高度(mm) |
开口(英寸) |
设计流量(T/ H ) |
|
0818 |
φ200×450 |
顶部开口2.5英寸螺纹 |
0.1～0.2 |
|
0835 |
φ200×890 |
顶部开口2.5英寸螺纹 |
0.2～0.4 |
|
0844 |
φ200×1100 |
顶部开口2.5英寸螺纹 |
0.2～0.5 |
|
1035 |
φ250×890 |
顶部开口2.5英寸螺纹 |
0.5～1.0 |
|
1054 |
φ250×1400 |
顶部开口2.5英寸螺纹 |
0.5～1.5 |
|
1254 |
φ300×1400 |
顶部开口2.5英寸螺纹 |
1.6～2.2 |
|
1265 |
φ300 ×1650 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1354 |
φ325 ×1400 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1365 |
φ325×1650 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1454 |
φ350×1400 |
顶部开口2.5英寸螺纹 |
2.5～3.0 |
|
1465 |
φ350×1650 |
顶部开口2.5英寸螺纹 |
2.5～3.0 |
|
1654 |
φ400×1400 |
顶部开口2.5英寸螺纹 |
3.2～4.5 |
|
1665 |
φ400×1650 |
顶部开口2.5英寸螺纹 |
3.2～4.5 |
|
2069 |
φ500×1750 |
顶部开口4英寸螺纹 |
4.5～6.0 |
|
2069 |
φ500×1750 |
顶部和底部开口 4” 螺纹 |
4.5～6.0 |
|
2474 |
φ600 ×1900 |
顶部开口4英寸螺纹 |
6.2～8.2 |
|
2474 |
φ600×1900 |
顶部和底部开口4英寸螺纹 |
6.2～8.2 |
|
3074 |
φ750×1900 |
顶部开口4英寸螺纹 |
7.2～12.2 |
|
3074 |
φ750×1900 |
顶部和底部开口4英寸螺纹 |
7.2～12.2 |
|
3674 |
φ900×1900 |
顶部开口4英寸螺纹 |
13.2～16.2 |
|
3674 |
φ900×1900 |
顶部和底部开口4英寸螺纹 |
13.2～16.2 |
|
3687 |
φ900×2200 |
顶部开口4英寸螺纹 |
13.2～16.2 |
|
3687 |
φ900×2200 |
顶部和底部开口4英寸螺纹 |
13.2～16.2 |
|
3696 |
φ900×2400 |
顶部和底部开口6英寸法兰 |
13.2～16.2 |
|
4074 |
φ1000×1900 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4074 |
φ1000×1900 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4087 |
φ1000×2200 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4096 |
φ1000×2400 |
顶部和底部开口6英寸法兰 |
18.0～25.0 |
|
4887 |
φ1200×2200 |
顶部和底部开口6英寸法兰 |
28.0～38.0 |
|
4896 |
φ1200×2400 |
顶部和底部开口6英寸法兰 |
28.0～38.0 |
|
6096 |
φ1500×2400 |
顶部和底部开口6英寸法兰 |
38.0～55.0 |
|
6396 |
φ1600×2400 |
顶部和底部开口6英寸法兰 |
38.0～55.0 |
|
7296 |
φ1800×2400 |
顶部和底部开口6英寸法兰 |
55.0～80.0 |
|
8096 |
φ2000×2400 |
顶部和底部开口6英寸法兰 |
80.0～100.0 |
|
80102 |
φ2000×2600 |
顶部和底部开口6英寸法兰 |
80.0～100.0 |
