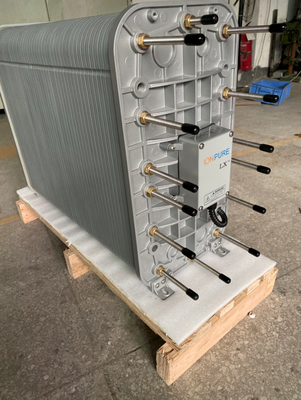

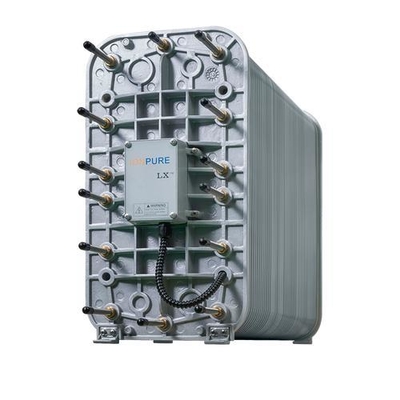

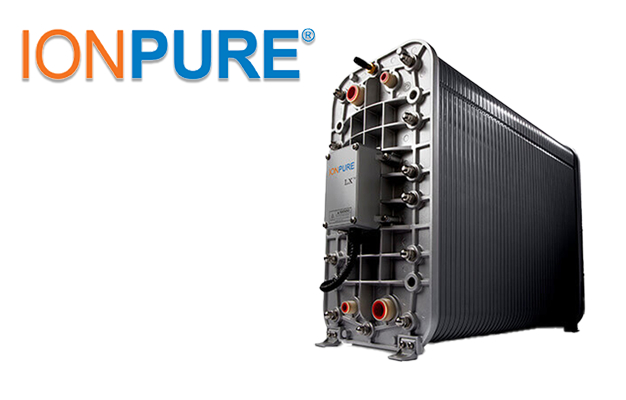

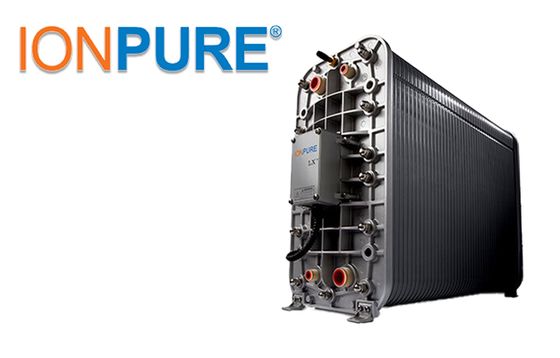

IONPURE LX-Z CEDI Module IP-LXM45Z-5 High-Capacity Industrial EDI
Productdetails:
| Place of Origin: | China |
| Merknaam: | IONPURE |
| Certificering: | CE |
| Model Number: | IP-LXM45Z-5 |
| Document: | fgwater-ionpure-lxz-ds.pdf |
Betalen & Verzenden Algemene voorwaarden:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Prijs: | onderhandelbaar |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Gedetailleerde informatie |
|||
| IP-LXM45Z-5 Minimum Flow Rate m3/hr (gpm) of the module: | 2.57 (11.3) | IP-LXM45Z-5 Design Flow Rate m3/hr (gpm) of the module: | 5.1-7.67 (22.5-33.8) |
|---|---|---|---|
| IP-LXM45Z-5 Shipping Weight kg (lbs): | 205 (451) | IP-LXM45Z-5 Operating Weight kg (lbs): | 157 (345) |
| IP-LXM45Z-5 Recovery: | 90–95% | Stack Advantages: | Environmentally Friendly Process, Continuous And Simple Operation |
| Silica (SiO2) Removal: | 90–99%, depending on feed conditions | pH: | 4-11 |
| Markeren: | IONPURE LX-Z EDI module,high-capacity industrial EDI,CEDI module with warranty |
||
Productomschrijving
IONPURE LX-Z CEDI Module IP-LXM45Z-5: High-Capacity For Critical Industrial Processes
Product Attributes
| IP-LXM45Z-5 Minimum Flow Rate m3/hr (gpm) of the module | 2.57 (11.3) |
| IP-LXM45Z-5 Design Flow Rate m3/hr (gpm) of the module | 5.1-7.67 (22.5-33.8) |
| IP-LXM45Z-5 Shipping Weight kg (lbs) | 205 (451) |
| IP-LXM45Z-5 Operating Weight kg (lbs) | 157 (345) |
| IP-LXM45Z-5 Recovery | 90–95% |
| Stack Advantages | Environmentally Friendly Process, Continuous And Simple Operation |
| Silica (SiO2) Removal | 90–99%, depending on feed conditions |
| pH | 4-11 |
Product Description
The IONPURE ® LX-Z IP-LXM45Z-5 is an industrial-scale Continuous Electrodeionization (CEDI) module engineered to deliver ultra-pure water (UPW) with zero chemical regeneration. Designed for high-flow applications in demanding sectors such as power generation, electronics manufacturing, and large-scale chemical processing, this membrane stack leverages advanced electro-deionization technology to replace hazardous mixed-bed ion exchange systems.
Key Innovations & Operational Advantages
- High-Capacity Chemical-Free Operation
- Zero Chemical Regeneration: Utilizes electrical current to continuously regenerate ion-exchange resins, removing dissolved ions without acids or alkalis.
- Consistent High Purity: Produces water with resistivity >16 MΩ*cm, exceeding mixed-bed performance.
- Robust Industrial Design for Heavy-Duty Use
- Structural Integrity: Features corrosion-resistant CPVC spacers, titanium-platinum electrodes, and stainless-steel cathodes.
- Leak-Proof Reliability: Dual O-ring seals and reinforced structural frame prevent leaks during high-pressure operation.
- Optimized Efficiency & Scalability
- Adaptive Power Management: Operates at 0-400V DC and 0-6A, dynamically adjusting to feedwater conditions.
- High-Throughput Design: Delivers 5.1 -7.7 m³/h of ultra-pure water for large industrial plants.
Quality Assurance Standards
CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.
Operating Environment
The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation.
Typical Module Performance
| Operating Parameters | |
|---|---|
| Recovery | 90-95% |
| DC Voltage | 0-400 |
| DC Amperage | 1.0-6.0 |
| Product Water Quality | |
| Product Resistivity | Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*† |
| Silica (SiO2) Removal | 90-99%, depending on feed conditions |
* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.
* Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm).
Feed Water Specifications
| Feed Water Conductivity Equivalent, including CO2 and Silica | < 40 μS/cm |
| Feed Water Source | RO permeate |
| Temperature | 5-45˚C (41-113˚F) |
| Inlet Pressure | 1.4-6.9 bar (20-100 psig) |
| Maximum Total Chlorine (as Cl2) | < 0.05 ppm |
| Iron (as Fe) | < 0.01 ppm |
| Manganese (as Mn) | < 0.01 ppm |
| Sulfide (S2-) | < 0.01 ppm |
| pH | 4-11 |
| Total Hardness (as CaCO3) | < 1.0 ppm |
| Dissolved Organics (TOC as C) | < 0.5 ppm |
| Silica (SiO2) | < 1.0 ppm |
Physical Specifications
| Item Number | L +/- 6.4 mm (0.25") | C +/- 3.2 mm (0.13") |
|---|---|---|
| LXM04Z | 257 mm (10.12") | 146.8 mm (5.78") |
| LXM10Z | 347.7 mm (13.69") | 235.7 mm (9.28") |
| LXM18Z | 488.2 mm (19.22") | 353.8 mm (13.93") |
| LXM24Z | 601.7 mm (23.69") | 442.7 mm (17.43") |
| LXM30Z | 696.5 mm (27.42") | 531.3 mm (20.92") |
| LXM45Z | 907.3 mm (35.72") | 747.7 mm (29.44") |
| LX8000Z | 1062 mm (41.81") | 888 mm (34.95") |
LX-Z Flow Range and Weights
| Ordering Part # | Model Number | Minimum Flow Rate m3/hr (gpm) | Design Flow Rate m3/hr (gpm) | Shipping Weight kg (lbs) | Operating Weight kg (lbs) |
|---|---|---|---|---|---|
| W3T17286 | IP-LXM04Z-5 | 0.22 (1.0) | 0.44-0.67 (2.0-3.0) | 59 (130) | 31 (69) |
| W3T17291 | IP-LXM10Z-5 | 0.57 (2.5) | 1.1-1.65 (5.0-7.5) | 78 (171) | 51 (113) |
| W3T17297 | IP-LXM18Z-5 | 1.02 (4.5) | 2.0-3.1 (9.0-13.5) | 99 (217) | 74 (163) |
| W3T17303 | IP-LXM24Z-5 | 1.36 (6.0) | 2.8-4.2 (12.5-18.8) | 115 (254) | 92 (103) |
| W3T17312 | IP-LXM30Z-5 | 1.70 (7.5) | 3.3-5.11 (15.0-22.5) | 132 (291) | 110 (243) |
| W3T17314 | IP-LXM45Z-5 | 2.57 (11.3) | 5.1-7.67 (22.5-33.8) | 205 (451) | 157 (345) |
| W3T584543 | IP-LX8000Z-5 | 3.13 (13.75) | 7.5 - 10 (33 - 44) | 225 (496) | 190 (419) |
E-Cell EDI Technology Performance Examples
E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
For application cases, please click: www.fgwater.com/Industries/
