Veolia E-Cell MK-3 EDI Stack for Continuous High-Purity Water Production
Productdetails:
| Plaats van herkomst: | CHINA |
| Merknaam: | VEOLIA |
| Certificering: | CE |
| Modelnummer: | Veolia EDI-modules E-cel MK-3 |
| Document: | Veolia EDI catalog.pdf |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 pc |
|---|---|
| Prijs: | onderhandelbaar |

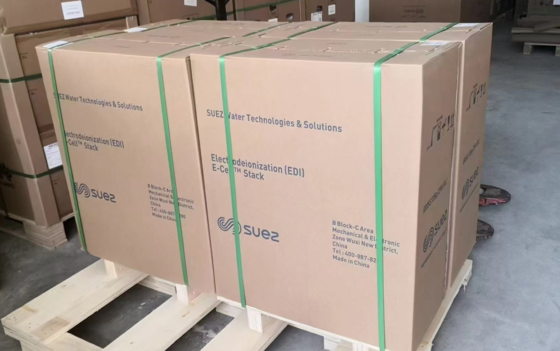

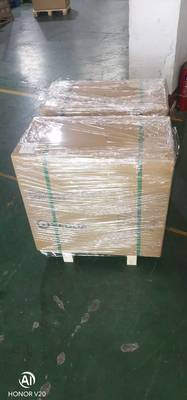

| Verpakking Details: | Standaard exportpakking |
| Levertijd: | 5- 8 werkdagen |
| Betalingscondities: | T/t |
| Levering vermogen: | 60000 eenheden per maand |
|
Gedetailleerde informatie |
|||
| Standaard maximale waterproductie (M3 /HR): | 4.5 | Standaard minimale waterproductie (M3 /HR): | 1.6 |
|---|---|---|---|
| Standaardterugwinning: | tot 96% | Standaard verzendgewicht van deze stapel: | 100 kg (220 lbs) |
| Standaard hardheid (PPM als CACO3): | <1.0 | Natrium: | ≤ 3 PPB |
| Bor: | Zo laag als 0,08 ppb | PH -bereik: | 4 tot 11 |
| Kleur: | ≤ 5 APHA | Weerstand: | ≥ 16 mohm-cm |
| Module -toepassing: | Industriële hoge zuiverheid watervoorbereiding | ||
| Markeren: | Veolia E-Cell MK-3 EDI stack,high-purity water production EDI stack,Suez EDI stack with warranty |
||
Productomschrijving

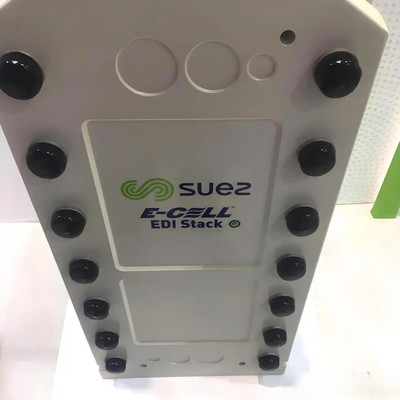

The Veolia E-Cell MK-3 Electrodeionization (EDI) Stack is designed for the continuous production of high-purity water, effectively removing ionized and weakly ionized substances from reverse osmosis (RO) permeate. It delivers ultra-pure water with resistivity up to 18 MΩ·cm without the need for chemical regeneration, reducing operational costs and environmental impact. Ideal for industries such as power generation, pharmaceuticals, microelectronics, and semiconductors, the MK-3 stack ensures reliable performance, high system recovery rates, and stable operation under varying conditions. Its robust construction supports long service life and minimal maintenance, making it a critical component in industrial water purification systems
| Attribute | Value |
|---|---|
| Maximum water production (m³/hr) | 4.5 |
| Minimum water production (m³/hr) | 1.6 |
| Recovery | Up to 96% |
| Shipping Weight | 100 kg (220 lbs) |
| Hardness (ppm as CaCO₃) | <1.0 |
| Sodium | ≤ 3 ppb |
| Boron | As low as 0.08 ppb |
| pH Range | 4 to 11 |
| Color | ≤ 5 APHA |
| Resistivity | ≥ 16 MOhm-cm |
| Application | Industrial High Purity Water Preparation |
Industrial-grade continuous electrodeionization technology utilizing DC electric fields to drive ion migration, combining ion-exchange resins and selective membranes for continuous impurity removal.
- In-situ electrochemical regeneration: Eliminates chemical acid/base regeneration
- Three-channel design: Counter-current operation reduces scaling risks (verified pressure drop: 1.4-3.4 bar)
- Chemical-free operation: Complies with ISO 14001 standards
- Compact modularity: MK-series depth 29-74 cm for space efficiency
- Thermal sanitization: Supports 85°C hot-water sanitization (≥160 cycles), meeting cGMP
- Energy optimization: 20% reduced energy consumption vs conventional EDI (0-400 VDC)
| Parameter | Value |
|---|---|
| Nominal Flow | 3.4 m³/h (15 gpm) |
| Flow Rate Range | 1.7 - 4.5 m³/h (7.0 - 20 gpm) |
| Dimensions (W x H x D) | 30 cm x 61 cm x 54 cm (12" x 24" x 22") |
| Product Water Quality | Resistivity ≥ 16 MOhm-cm, Sodium ≤ 3 ppb, Silica ≤ 5 ppb, Boron ≤ 0.08 ppb |
| Removal Efficiencies | Sodium ≥ 99.9%, Silica up to 99%, Boron up to 96% |
| Operating Parameters | Voltage 0-300 VDC, Amperage 0-5.2 ADC, Inlet Pressure ≤ 6.9 bar |
- Ultrapure water for semiconductor chip rinsing and microelectronics
- Demineralized boiler feed water for power plants and industrial facilities
- CE, RoHS, CSA, and EAC certified
- ISO 9001 and ISO 14001 compliant manufacturing
- UKCA certified
- Halal certified by IFANCA®
For more models and information, visit: https://www.fgwater.com/Veolia-Electrodeionization-EDI-Stack-Module/389.html
