DuPont™ XP 77 IG Ultrafiltration Membrane: Superior Precision, Unmatched Reliability
Productdetails:
| Plaats van herkomst: | CHINA |
| Merknaam: | Dupont |
| Certificering: | CE |
| Modelnummer: | Integratec ™ XP 77 IG (voorheen SFP 2880XP) |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 pc |
|---|---|
| Prijs: | onderhandelbaar |
| Verpakking Details: | Standaard exportpakking |
| Levertijd: | 5- 8 werkdagen |
| Levering vermogen: | 60000 eenheden per maand |
|
Gedetailleerde informatie |
|||
| Effectief membraanoppervlak van XP 77 IG: | 8 inch | Debiet van XP 77 IG: | 2.0–8,5 m³/uur (8,8–37,6 gpm) |
|---|---|---|---|
| Maximale voedingsdruk van XP 77 IG: | 6.25 bar (90,65 psi) bij 20 ° C | Nominale poriediameter van XP 77 Ig: | 0,03 µm |
| Maximale terugspoeldruk van XP 77 IG: | 2.5 bar (36 psi) | Max. het bedienen van TMP van deze module: | 2.1 bar |
| Max operationele luchtschuurstroom van deze module: | 12 nm3/uur | Naocl (max.) Van deze module: | 2.000 mg/l |
| certificeringen: | ISO 9001, NSF, CE | Sollicitatie: | Productie van zuiver water |
| Voordelen: | Hoog rendement · energiebesparing | ||
Productomschrijving
The DuPont™ XP 77 IG Ultrafiltration Membrane is a high-performance filtration solution engineered for excellence in diverse water treatment applications. Featuring an advanced PVDF (polyvinylidene fluoride) hollow fiber construction, this membrane delivers exceptional filtration accuracy, robust mechanical strength, and consistent performance. Its nominal pore size of 0.03 microns ensures the efficient removal of bacteria, viruses, colloids, and other suspended particles, producing water with turbidity ≤0.1 NTU and a Slit Density Index (SDI15) ≤2.5. This makes it an ideal pretreatment for reverse osmosis (RO) systems and other critical processes
| Attribute | Value |
|---|---|
| Effective membrane area | 8 inch |
| Flow rate per module | 2.0–8.5 m³/hr (8.8–37.6 gpm) |
| Max feed pressure | 6.25 bar (90.65 psi) at 20°C |
| Nominal pore diameter | 0.03 µm |
| Max backwash pressure | 2.5 bar (36 psi) |
| Max operating TMP | 2.1 bar |
| Max operating air scour flow | 12 nm3/hr |
| NaOCl (max.) | 2,000 mg/L |
| Certifications | ISO 9001, NSF, CE |
| Application | Pharma and Beverage |

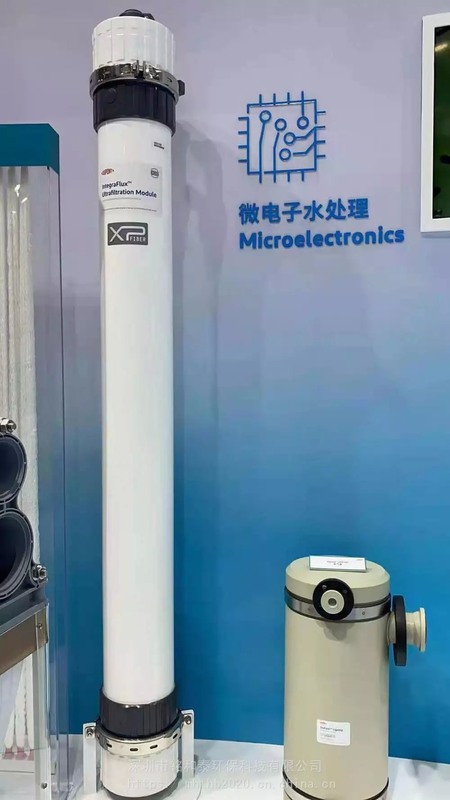

The DuPont IntegraTec XP 77 IG ultrafiltration module delivers industry-leading performance for demanding industrial water treatment applications. Engineered with advanced PVDF hollow-fiber technology, it combines exceptional filtration efficiency with robust durability to reduce operational costs and system footprint.
- Superior Filtration Efficiency
- 0.03 µm nominal pore size: Effectively removes bacteria, viruses, colloids, and particulates
- High-flux design: 35% higher permeability than previous-generation modules
- Robust Construction & Reliability
- PVDF hollow-fiber membrane: Exceptional mechanical strength and chemical resistance (pH 2-11)
- U-PVC housing: Eliminates the need for external pressure vessels
- Optimized Operational Economics
- Outside-in flow configuration: Tolerates feedwater with high suspended solids
- Innovative end-cap design: Simplifies piping and saves space
| Model | Type | Membrane Area (m²/ft²) | Module Volume (Liters/Gallons) | Weight (Kg/lbs) |
|---|---|---|---|---|
| XP77 IG | Industrial | 77 / 829 | 39 / 10.3 | 61/100 (empty) 135/220 (water filled) |
| XP77 | NSF/ANSI 61 and 419 | 77 / 829 | 39 / 10.3 | 61/100 (empty) 135/220 (water filled) |
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-110 l/m2/hr | 24-65 gfd |
| Flow range | 2.0 - 8.5 m3/hr | 8.8 - 37.4 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 90.65 psi |
| Max. operating TMP | 2.1 bar | 30.5 psi |
| Max operating air scour flow | 12 nm3/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
| NaOCl (max.) | 2,000 mg/L | |
| Particle size (max.) | 300 µm | |
| Flow configuration | Outside in, dead end flow | |
