Dupont SFP-2880 PVDF Ultrafiltration Membrane Module with 77 m² Membrane Area and 0.03 μm Pore Size for Outside-In Filtration
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | Dupont |
| Certificering: | CE |
| Modelnummer: | SFP-2880 |
| Document: | UF-IntegraTec-P-Series-PVDF...en.pdf |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 st |
|---|---|
| Prijs: | onderhandelbaar |
| Verpakking Details: | China |
| Levertijd: | 5- 8 werkdagen |
| Levering vermogen: | 60000 eenheden per maand |
|
Gedetailleerde informatie |
|||
| Membraangebied: | 77 m² | Materiaal behuizing: | U-PVC |
|---|---|---|---|
| Nominale poriegrootte: | 00,03 μm | Stroomconfiguratie: | Van buiten naar binnen, doodlopend |
| Membraan materiaal: | PVDF | Maximale bedrijfsdruk: | 6.25 bar |
Productomschrijving
Dupont PVDF Ultrafiltration Membrane Model SFP-2880 is designed for drinking water and high-quality water applications. This high-performance pressurized ultrafiltration (UF) membrane module utilizes advanced PVDF hollow fiber material for reliable and efficient removal of suspended solids, bacteria, viruses, and colloids in various water treatment applications.
With an outside-in flow configuration and large membrane area of 77 m², the SFP-2880 module offers superior filtration efficiency, reduced footprint, and lower operating cost. Its hydrophilic PVDF membrane ensures excellent fouling resistance, easy cleaning, and long service life.
This module is widely used in industrial water treatment, municipal water supply, wastewater reuse, and as a reliable pretreatment solution for reverse osmosis (RO) systems.
- High-strength PVDF hollow fiber membrane for long-term durability
- Nominal pore size: 0.03 μm for effective bacteria & virus removal
- Outside-in filtration design, suitable for high turbidity feed water
- Large membrane area (77 m²) for higher productivity
- Hydrophilic membrane for better wettability and easy cleaning
- Compact design with high packing density
- Low backwash water consumption
- Stable operation and consistent permeate quality
- Surface water treatment
- Seawater pretreatment
- Municipal drinking water treatment
- Industrial wastewater treatment & reuse
- RO system pretreatment
- Cooling water & process water purification
| Model | Type | Part # | Membrane Area (m²) | Membrane Area (ft²) | Volume - Empty (L) | Volume - Water Filled (Gal) | Weight (Kg) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| SFP-2880 | Pretreatment | 280934 | 77 | 829 | 39 | 10.3 | 61/100 | 135/220 |
| SFD-2880 | NSF/ANSI 61 Drinking water | 324169 | 77 | 829 | 39 | 10.3 | 61/100 | 135/220 |

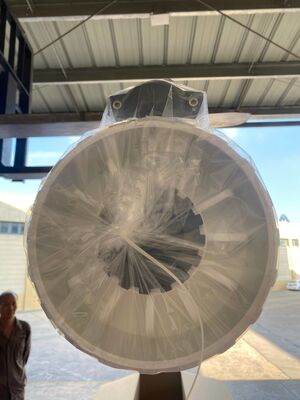

Figure 1: SFP and SFD 2880 (8-inch diameter)
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-120 l/m²/hr | 24-70 gfd |
| Flow Range | 3.1-9.3 m³/hr | 13.6 - 40.9 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. Inlet Module Pressure (@ 20ºC) | 6.25 bar | 93.75 psi |
| Max. Operating TMP | 2.1 bar | 30 psi |
| Max Operating Air Scour Flow | 12 nm³/hr | 7.1 scfm |
| Max Backwash Pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
| NaOCl (max.) | 2,000 mg/L | |
| TSS (max.) | 100 mg/L | |
| Turbidity (max.) | 300 ntu | |
| Particle Size (max.) | 300 µ | |
| Flow Configuration | Outside in, dead end flow | |
| Expected Filtrate Turbidity | ≤0.1 NTU | |
| Expected Filtrate SDI | ≤2.5 | |
Ensuring that the UF system is properly started is critical to preparing the membrane for operation and preventing potential membrane damage. Following the correct startup sequence is essential to maintaining system parameters within design specifications, helping to achieve water quality and productivity goals.
Before beginning the startup procedure, membrane preconditioning, membrane module installation, instrumentation calibration, and system checks must be completed per the guidelines outlined in the product technical manual.
To prevent membrane damage, sudden pressure changes during startup, shutdown, cleaning, or other sequences should be avoided. Before startup, flush the UF system thoroughly to eliminate any remaining shipping solution. In addition, purge any residual air from the system before commencing operation.
Start the unit manually, with the goal of achieving an initial permeate flow rate of 60% of the design capacity. Depending on the application, it may be necessary to discard the permeate obtained during initial operation. Refer to the product technical manual for detailed instructions.
To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.
